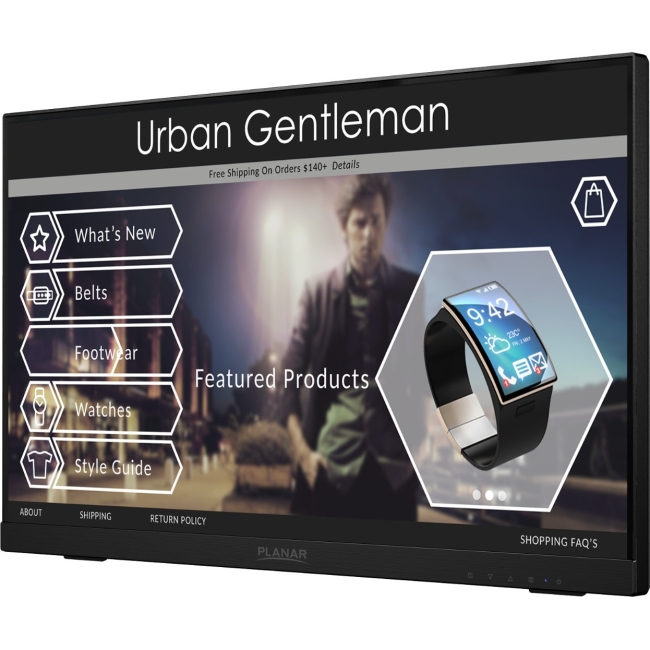

Planar 997-8286-00 22IN IPS MULTI-TOUCH PCT2235 PRO-CAP EDGE-LIT BLACK

For the best value for the money, the Planar® PCT2235 is a 22" Full HD LCD monitor optimized with multi-touch interactivity. With its easy to adjust, ergonomically-friendly Planar® Helium™ Stand and multiple video inputs, this versatile monitor accommodates all user expectations.

General Information
Manufacturer	Leyard
Manufacturer Part Number	997-8286-00
Manufacturer Website Address	http://www.planar.com
Brand Name	Planar
Product Model	PCT2235
Product Name	PCT2235 22" Touch Screen Monitor
Product Type	LCD Touchscreen Monitor
Technical Information
Screen Size Class	22"
Viewable Screen Size	22"
Screen Mode	Full HD
Response Time	14 ms
Aspect Ratio	16:9
Backlight Technology	Edge LED
Video
Maximum Resolution	1920 x 1080
Color Supported	16.7 Million Colors
Contrast Ratio	1,000:1
Brightness	250 Nit
Audio
Speakers	Yes
Touchscreen Information
Touchscreen Type	Projected Capacitive
Multi-touch Screen	Yes
Interfaces/Ports
HDMI	Yes
USB	Yes
VGA	Yes
DisplayPort	Yes
Power Description
Operating Power Consumption	27 W
Physical Characteristics
VESA Mount Compatible	Yes
Product Color	Black
Height	11.8"
Width	19.3"
Depth	1.9"
Weight (Approximate)	7.90 lb
Miscellaneous
Package Contents	PCT2235 22" Touch Screen Monitor Power Cord VGA Cable DisplayPort Cable USB Cable (A to B) Audio-in Cable User's Guide
Country of Origin	China
Environmentally Friendly	Yes
Warranty
Limited Warranty	3 Year

Specifications

• Mfr Part Number: 997-8286-00
• Display Type: 16:9 Edge-lit LCD Multi-Touch Projected Capacitive 10-point Display w/ LED Backlight
• Display Area: 22" (21.5" Diagonal)
• Display Colors: 16.7 Million
• Pixel Pitch: 0.24825 mm
• Brightness: 212 cd/m² (w/ touchscreen); 250 cd/m² (w/o touchscreen)
• Contrast Ratio: 1,000:1
• Viewing Angle (H/V): 178° / 178°
• Response Time: 14 ms
• Display Resolution: 1920 x 1080 (Full HD)
• Interface: VGA, HDMI, DisplayPort, USB (A to B), 3.5 mm Audio-in
• Power:
  • Power Supply: 100-240V AC, 50/60 Hz
  • Power Consumption:
    • Typical: 27W
    • Standby Off: < 0.5W
• Speakers: 2x 2W Speakers
• Tilt: +15° ~ +70° and flat
• VESA Mount: 100 x 100 mm

• Color: Black
• Dimensions (WxDxH): 19.3 x 1.9 x 11.8 inch / 490.3 x 47.8 x 299.4 mm
• Weight: 7.9 lbs / 3.6 kg
