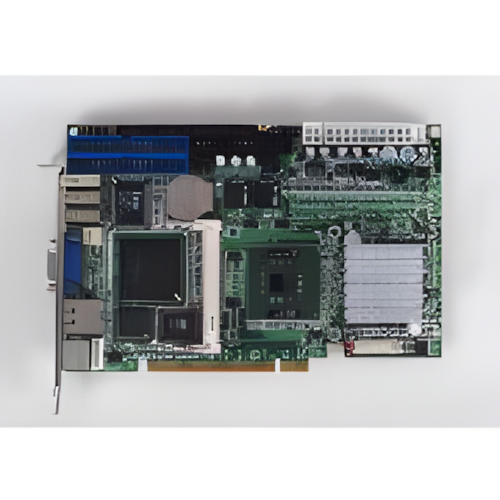

AAEON TF-HSB-811P-A10-VE Half-Size PCI CPU card Celeron-M 600MHz VGA/LVDS, 5 USB, CF (COMPACT FLASH), Mini-PCI, AC97 Audio, 10/100 LAN, ATX / RoHS

• Onboard Low Power CPU, Pentium M/Celeron M; Socket Version Optional
• DDR 266 Memory Supports Up to 2GB
• Integrated AGP 4X 2D/3D Graphics Accelerator, LVDS Support
• Integrated AC97 Codec Audio (Daughter Board optional)
• Supports one 10/100/1000Base-T Ethernet (10/100 &GbE optional)
• Supports Ultra ATA100 & CompactFlash Type-II Storage
• Supports Mini PCI Type-III Socket
• 5 USB2.0/ 1 RS-232, 1 RS-232/422/485/ 1 Parallel/ 1 IrDA port
• Watchdog Function 1~255 Sec

• Form Factor
  PICMG/PCI Half-size SBC
• Processor
  Intel Pentium M / Celeron M CPU, FSB: 400MHz,Onboard 600MHz/ non-cache. (Socket CPU optional)
• Main Chipset
  Intel 82852GME + Intel 82801DB (ICH4)
• System Memory
  2x200Pin 2.5V DDR DIMM Socket, total up to 2GB,supports DDR memory (DDR200/266)
• LCD Controller
  Integrated on Intel 82852GM, LVDS output, dual display support
• VGA Controller
  Integrated on Intel 82852GM, AGP 4X, dual display support
• Ethernet
  10/100Mb or 10/100/1000Mb LAN optional, RJ-45 X1, Intel 82562EZ / 82541GI controller
• Audio (Daughter Board)
  Realtek ALC655 AC97 Codec , MIC-in/Line-in/Line-out/CD-in
• BIOS
  Award Plug & Play FWH BIOS-4Mb ROM
• IDE Interface
  ATA-100 x2 Channel (Supports two ATAPI devices)
• Floppy Drive Interface
  One Standard Floppy Disk Drive port, supports up to two floppy devices
• Serial Port
  Two COM ports: (Internal Pin Header , External D-sub x 2) COM 1: RS-232
  COM 2: RS-232/422/485
• Parallel Port
  Supports SPP/ EPP/ ECP mode
• Keyboard and Mouse
  One Mini-DIN PS/2 Keyboard and Mouse connector; One internal keyboard pin header
• Universal Serial Bus
  Five USB 2.0 Ports; One 5x2 pin header for internal; Two Type-A Connector onboard
• Compact Flash
  Supports CFD Type II connector (Hot swappable)
• Expansion Interface
  PICMG/ PCI Interface/ Mini PCI Type III socket
• IR Interface
  Supports one IrDA header
• Watchdog Timer
  1 ~ 255 sec., can be set with software on Super I/O
• RTC
  Internal RTC
• Power Supply
  Request ATX 12V, Standard ATX power connector
• Operation Temp.
  32F ~ 140F (0^oC ~ 60^oC)
